#include <descriptor.h>

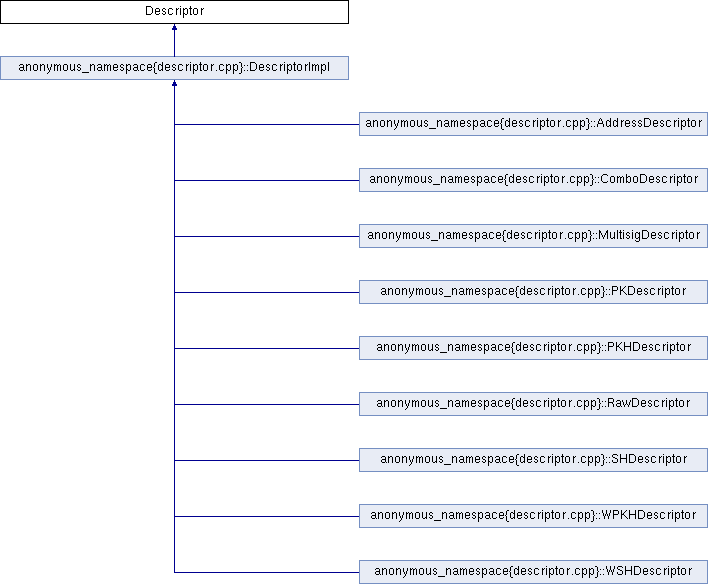

Inheritance diagram for Descriptor:

Public Member Functions
virtual	~Descriptor ()=default

virtual bool	IsRange () const =0

virtual bool	IsSolvable () const =0

virtual std::string	ToString () const =0

virtual bool	ToPrivateString (const SigningProvider &provider, std::string &out) const =0

virtual bool	Expand (int pos, const SigningProvider &provider, std::vector< CScript > &output_scripts, FlatSigningProvider &out, std::vector< unsigned char > *cache=nullptr) const =0

virtual bool	ExpandFromCache (int pos, const std::vector< unsigned char > &cache, std::vector< CScript > &output_scripts, FlatSigningProvider &out) const =0

virtual void	ExpandPrivate (int pos, const SigningProvider &provider, FlatSigningProvider &out) const =0

Detailed Description

Interface for parsed descriptor objects.

Constructor & Destructor Documentation

◆ ~Descriptor()

virtual Descriptor::~Descriptor ( )

virtualdefault

Member Function Documentation

◆ Expand()

virtual bool Descriptor::Expand	(	int	pos,
		const SigningProvider &	provider,
		std::vector< CScript > &	output_scripts,
		FlatSigningProvider &	out,
		std::vector< unsigned char > *	cache = `nullptr`
	)		const

pure virtual

Expand a descriptor at a specified position.

pos: the position at which to expand the descriptor. If IsRange() is false, this is ignored. provider: the provider to query for private keys in case of hardened derivation. output_script: the expanded scriptPubKeys will be put here. out: scripts and public keys necessary for solving the expanded scriptPubKeys will be put here (may be equal to provider). cache: vector which will be overwritten with cache data necessary to-evaluate the descriptor at this point without access to private keys.

Implemented in anonymous_namespace{descriptor.cpp}::DescriptorImpl.

◆ ExpandFromCache()

virtual bool Descriptor::ExpandFromCache	(	int	pos,
		const std::vector< unsigned char > &	cache,
		std::vector< CScript > &	output_scripts,
		FlatSigningProvider &	out
	)		const

pure virtual

Expand a descriptor at a specified position using cached expansion data.

pos: the position at which to expand the descriptor. If IsRange() is false, this is ignored. cache: vector from which cached expansion data will be read. output_script: the expanded scriptPubKeys will be put here. out: scripts and public keys necessary for solving the expanded scriptPubKeys will be put here (may be equal to provider).

Implemented in anonymous_namespace{descriptor.cpp}::DescriptorImpl.

◆ ExpandPrivate()

virtual void Descriptor::ExpandPrivate	(	int	pos,
		const SigningProvider &	provider,
		FlatSigningProvider &	out
	)		const

pure virtual

Expand the private key for a descriptor at a specified position, if possible.

pos: the position at which to expand the descriptor. If IsRange() is false, this is ignored. provider: the provider to query for the private keys. out: any private keys available for the specified pos will be placed here.

Implemented in anonymous_namespace{descriptor.cpp}::DescriptorImpl.

◆ IsRange()

virtual bool Descriptor::IsRange ( ) const

pure virtual

Whether the expansion of this descriptor depends on the position.

Implemented in anonymous_namespace{descriptor.cpp}::DescriptorImpl.

◆ IsSolvable()

virtual bool Descriptor::IsSolvable ( ) const

pure virtual

Whether this descriptor has all information about signing ignoring lack of private keys. This is true for all descriptors except ones that use raw or addr constructions.

Implemented in anonymous_namespace{descriptor.cpp}::RawDescriptor, anonymous_namespace{descriptor.cpp}::AddressDescriptor, and anonymous_namespace{descriptor.cpp}::DescriptorImpl.
