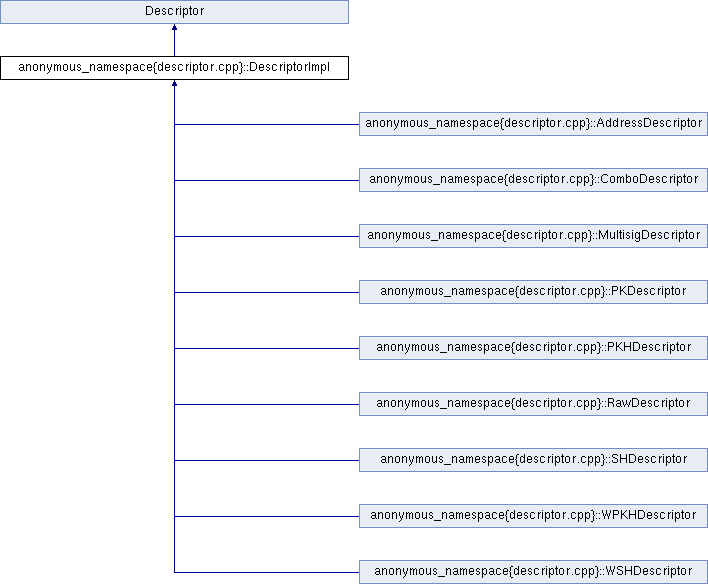

Inheritance diagram for anonymous_namespace{descriptor.cpp}::DescriptorImpl:

Public Member Functions
	DescriptorImpl (std::vector< std::unique_ptr< PubkeyProvider >> pubkeys, std::unique_ptr< DescriptorImpl > script, const std::string &name)

bool	IsSolvable () const override

bool	IsRange () const final

bool	ToStringHelper (const SigningProvider *arg, std::string &out, bool priv) const

std::string	ToString () const final

bool	ToPrivateString (const SigningProvider &arg, std::string &out) const override final

bool	ExpandHelper (int pos, const SigningProvider &arg, Span< const unsigned char > cache_read, std::vector< CScript > &output_scripts, FlatSigningProvider &out, std::vector< unsigned char > cache_write) const

bool	Expand (int pos, const SigningProvider &provider, std::vector< CScript > &output_scripts, FlatSigningProvider &out, std::vector< unsigned char > *cache=nullptr) const final

bool	ExpandFromCache (int pos, const std::vector< unsigned char > &cache, std::vector< CScript > &output_scripts, FlatSigningProvider &out) const final

void	ExpandPrivate (int pos, const SigningProvider &provider, FlatSigningProvider &out) const final

Public Member Functions inherited from Descriptor
virtual	~Descriptor ()=default

Protected Member Functions
virtual std::string	ToStringExtra () const
	Return a serialization of anything except pubkey and script arguments, to be prepended to those. More...

virtual std::vector< CScript >	MakeScripts (const std::vector< CPubKey > &pubkeys, const CScript *script, FlatSigningProvider &out) const =0

Private Attributes
const std::vector< std::unique_ptr< PubkeyProvider > >	m_pubkey_args
	Public key arguments for this descriptor (size 1 for PK, PKH, WPKH; any size of Multisig). More...

const std::unique_ptr< DescriptorImpl >	m_script_arg
	The sub-descriptor argument (nullptr for everything but SH and WSH). More...

const std::string	m_name
	The string name of the descriptor function. More...

Detailed Description

Base class for all Descriptor implementations.

Constructor & Destructor Documentation

◆ DescriptorImpl()

anonymous_namespace{descriptor.cpp}::DescriptorImpl::DescriptorImpl	(	std::vector< std::unique_ptr< PubkeyProvider >>	pubkeys,
		std::unique_ptr< DescriptorImpl >	script,
		const std::string &	name
	)

inline

Member Function Documentation

◆ Expand()

bool anonymous_namespace{descriptor.cpp}::DescriptorImpl::Expand	(	int	pos,
		const SigningProvider &	provider,
		std::vector< CScript > &	output_scripts,
		FlatSigningProvider &	out,
		std::vector< unsigned char > *	cache = `nullptr`
	)		const

inlinefinalvirtual

Expand a descriptor at a specified position.

pos: the position at which to expand the descriptor. If IsRange() is false, this is ignored. provider: the provider to query for private keys in case of hardened derivation. output_script: the expanded scriptPubKeys will be put here. out: scripts and public keys necessary for solving the expanded scriptPubKeys will be put here (may be equal to provider). cache: vector which will be overwritten with cache data necessary to-evaluate the descriptor at this point without access to private keys.

Implements Descriptor.

◆ ExpandFromCache()

bool anonymous_namespace{descriptor.cpp}::DescriptorImpl::ExpandFromCache	(	int	pos,
		const std::vector< unsigned char > &	cache,
		std::vector< CScript > &	output_scripts,
		FlatSigningProvider &	out
	)		const

inlinefinalvirtual

Expand a descriptor at a specified position using cached expansion data.

pos: the position at which to expand the descriptor. If IsRange() is false, this is ignored. cache: vector from which cached expansion data will be read. output_script: the expanded scriptPubKeys will be put here. out: scripts and public keys necessary for solving the expanded scriptPubKeys will be put here (may be equal to provider).

Implements Descriptor.

◆ ExpandHelper()

bool anonymous_namespace{descriptor.cpp}::DescriptorImpl::ExpandHelper	(	int	pos,
		const SigningProvider &	arg,
		Span< const unsigned char > *	cache_read,
		std::vector< CScript > &	output_scripts,
		FlatSigningProvider &	out,
		std::vector< unsigned char > *	cache_write
	)		const

inline

◆ ExpandPrivate()

void anonymous_namespace{descriptor.cpp}::DescriptorImpl::ExpandPrivate	(	int	pos,
		const SigningProvider &	provider,
		FlatSigningProvider &	out
	)		const

inlinefinalvirtual

Expand the private key for a descriptor at a specified position, if possible.

pos: the position at which to expand the descriptor. If IsRange() is false, this is ignored. provider: the provider to query for the private keys. out: any private keys available for the specified pos will be placed here.

Implements Descriptor.

◆ IsRange()

bool anonymous_namespace{descriptor.cpp}::DescriptorImpl::IsRange ( ) const

inlinefinalvirtual

Whether the expansion of this descriptor depends on the position.

Implements Descriptor.

◆ IsSolvable()

bool anonymous_namespace{descriptor.cpp}::DescriptorImpl::IsSolvable ( ) const

inlineoverridevirtual

Whether this descriptor has all information about signing ignoring lack of private keys. This is true for all descriptors except ones that use raw or addr constructions.

Implements Descriptor.

Reimplemented in anonymous_namespace{descriptor.cpp}::RawDescriptor, and anonymous_namespace{descriptor.cpp}::AddressDescriptor.

◆ MakeScripts()

virtual std::vector<CScript> anonymous_namespace{descriptor.cpp}::DescriptorImpl::MakeScripts	(	const std::vector< CPubKey > &	pubkeys,
		const CScript *	script,
		FlatSigningProvider &	out
	)		const

protectedpure virtual

A helper function to construct the scripts for this descriptor.

This function is invoked once for every CScript produced by evaluating m_script_arg, or just once in case m_script_arg is nullptr.

Parameters

pubkeys	The evaluations of the m_pubkey_args field.
script	The evaluation of m_script_arg (or nullptr when m_script_arg is nullptr).
out	A FlatSigningProvider to put scripts or public keys in that are necessary to the solver. The script arguments to this function are automatically added, as is the origin info of the provided pubkeys.

Returns: A vector with scriptPubKeys for this descriptor.

Implemented in anonymous_namespace{descriptor.cpp}::WSHDescriptor, anonymous_namespace{descriptor.cpp}::SHDescriptor, anonymous_namespace{descriptor.cpp}::MultisigDescriptor, anonymous_namespace{descriptor.cpp}::ComboDescriptor, anonymous_namespace{descriptor.cpp}::WPKHDescriptor, anonymous_namespace{descriptor.cpp}::PKHDescriptor, anonymous_namespace{descriptor.cpp}::PKDescriptor, anonymous_namespace{descriptor.cpp}::RawDescriptor, and anonymous_namespace{descriptor.cpp}::AddressDescriptor.

◆ ToPrivateString()

bool anonymous_namespace{descriptor.cpp}::DescriptorImpl::ToPrivateString	(	const SigningProvider &	provider,
		std::string &	out
	)		const

inlinefinaloverridevirtual

Convert the descriptor to a private string. This fails if the provided provider does not have the relevant private keys.

Implements Descriptor.

◆ ToString()

std::string anonymous_namespace{descriptor.cpp}::DescriptorImpl::ToString ( ) const

inlinefinalvirtual

Convert the descriptor back to a string, undoing parsing.

Implements Descriptor.

◆ ToStringExtra()

virtual std::string anonymous_namespace{descriptor.cpp}::DescriptorImpl::ToStringExtra ( ) const

inlineprotectedvirtual

Return a serialization of anything except pubkey and script arguments, to be prepended to those.

Reimplemented in anonymous_namespace{descriptor.cpp}::MultisigDescriptor, anonymous_namespace{descriptor.cpp}::RawDescriptor, and anonymous_namespace{descriptor.cpp}::AddressDescriptor.

◆ ToStringHelper()

bool anonymous_namespace{descriptor.cpp}::DescriptorImpl::ToStringHelper	(	const SigningProvider *	arg,
		std::string &	out,
		bool	priv
	)		const

inline

Member Data Documentation

◆ m_name

const std::string anonymous_namespace{descriptor.cpp}::DescriptorImpl::m_name

private

The string name of the descriptor function.

◆ m_pubkey_args

const std::vector<std::unique_ptr<PubkeyProvider> > anonymous_namespace{descriptor.cpp}::DescriptorImpl::m_pubkey_args

private

Public key arguments for this descriptor (size 1 for PK, PKH, WPKH; any size of Multisig).

◆ m_script_arg

const std::unique_ptr<DescriptorImpl> anonymous_namespace{descriptor.cpp}::DescriptorImpl::m_script_arg

private

The sub-descriptor argument (nullptr for everything but SH and WSH).

The documentation for this class was generated from the following file:

src/script/descriptor.cpp
