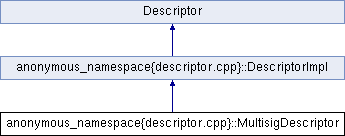

Inheritance diagram for anonymous_namespace{descriptor.cpp}::MultisigDescriptor:

Public Member Functions
	MultisigDescriptor (int threshold, std::vector< std::unique_ptr< PubkeyProvider >> providers)

Public Member Functions inherited from anonymous_namespace{descriptor.cpp}::DescriptorImpl
	DescriptorImpl (std::vector< std::unique_ptr< PubkeyProvider >> pubkeys, std::unique_ptr< DescriptorImpl > script, const std::string &name)

bool	IsSolvable () const override

bool	IsRange () const final

bool	ToStringHelper (const SigningProvider *arg, std::string &out, bool priv) const

std::string	ToString () const final

bool	ToPrivateString (const SigningProvider &arg, std::string &out) const override final

bool	ExpandHelper (int pos, const SigningProvider &arg, Span< const unsigned char > cache_read, std::vector< CScript > &output_scripts, FlatSigningProvider &out, std::vector< unsigned char > cache_write) const

bool	Expand (int pos, const SigningProvider &provider, std::vector< CScript > &output_scripts, FlatSigningProvider &out, std::vector< unsigned char > *cache=nullptr) const final

bool	ExpandFromCache (int pos, const std::vector< unsigned char > &cache, std::vector< CScript > &output_scripts, FlatSigningProvider &out) const final

void	ExpandPrivate (int pos, const SigningProvider &provider, FlatSigningProvider &out) const final

Public Member Functions inherited from Descriptor
virtual	~Descriptor ()=default

Protected Member Functions
std::string	ToStringExtra () const override
	Return a serialization of anything except pubkey and script arguments, to be prepended to those. More...

std::vector< CScript >	MakeScripts (const std::vector< CPubKey > &keys, const CScript *, FlatSigningProvider &) const override

Detailed Description

A parsed multi(...) descriptor.

Constructor & Destructor Documentation

anonymous_namespace{descriptor.cpp}::MultisigDescriptor::MultisigDescriptor	(	int	threshold,
		std::vector< std::unique_ptr< PubkeyProvider >>	providers
	)

inline

std::vector<CScript> anonymous_namespace{descriptor.cpp}::MultisigDescriptor::MakeScripts	(	const std::vector< CPubKey > &	pubkeys,
		const CScript *	script,
		FlatSigningProvider &	out
	)		const

inlineoverrideprotectedvirtual

A helper function to construct the scripts for this descriptor.

This function is invoked once for every CScript produced by evaluating m_script_arg, or just once in case m_script_arg is nullptr.

Parameters

pubkeys	The evaluations of the m_pubkey_args field.
script	The evaluation of m_script_arg (or nullptr when m_script_arg is nullptr).
out	A FlatSigningProvider to put scripts or public keys in that are necessary to the solver. The script arguments to this function are automatically added, as is the origin info of the provided pubkeys.
